TG111-S001J24RL Discrete Lan Transformer TG111-E001J24RL 1000Base-T Ethernet
| TG111-E112NYRL / TG111-E001J24RL | 24Pins Transformer | Gigabit Ethernet | SMT Transformer |
Gigabit Ethernet Discrete Transformer
Dual Port 10/100BASE-TX POE/POE+ Transformer
IEEE802.3ab Compliant , 1500Vrms Hi-Pot
Patented Open Frame Construction
Halo TG111-S001J24RL Gigabit Ethernet Transformer
TG111-E001J24RL Halo 1000Base-T Transformer
Competitive Advantage
☛ Designer / Manufacturer for 18 years.
☛ 2500 Works, 4 plants
☛ Definitely Pass Fluke network analyzer
☛ Stock or 4 weeks.
☛ Flexible design according to customers' required informations without any exral fee.
| Number of ports | Applications | Turns Ratio | Power Over Ethernet |
| Single GE/ Dual FE | 1G Ethernet | 1:1 | IEEE 802.3 |
| Packaging | Tab Direction | Mounting Type | Contact Finish |
| Reel , Carton | -- | SMT/SMD | -- |
| Pins Number | Shielding | Isolation Voltage | LED Color |
| 24 Pins | -- | 1500 Vrms | --- |

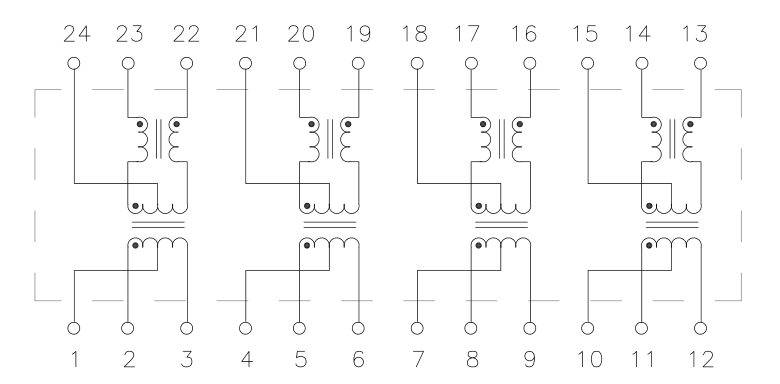

Electrical Specifications @25℃
1.Turns Ratio: 1CT∶1
2.Insertion Loss:
1-100MHz:-1.0dB MAX
3.Return Loss(dB MIN):
1-30MHz:-18 40MHz:-18
50MHz:-16 60-80MHz:-12
100MHz:-10
4.Crosstalk(dB MIN):
30MHz:-45 60MHz:-40
100MHz:-33
5.DCMR(dB MIN):
30MHz:-43 60MHz:-37
100MHz:-33
6.Hipot: 1500Vrms MIN
7.Operating Temperature: -40℃～+85℃.
NOTES:
1.Gigabit Transformer Modules With Power Over Ethernet Option
2.Meets IEEE 802.3 peciffcation
3.For RoHS part add suffix NL
4.RoHS"NL" peak solder rating 260℃%%P5℃.
5.100% Electrical Testing
