TG1G-S010NZRL Discrete Transformer TG1G-E010NZRL Gigabit SMD Single Port
| TG1G-S010NZRL / TG1G-E010NZRL | Halo Transformer | Gigabit LAN | SMD Transformer |
Gigabit Ethernet Discrete Transformer Dual Port 10/100BASE-TX
IEEE802.3ab Compliant , 1500Vrms Hi-Pot
Patented Open Frame Construction
Halo TG1G-S010NZRL Transformer Cross
Halo TG1G-E010NZRLTransformer Cross
Competitive Advantage
☛ Designer and Manufacturer for 18 years.
☛ 2500 Works, 4 plants
☛ Definitely Pass Fluke network analyzer
☛ Stock or 4 weeks.
☛ Flexible design according to customers' required informations without any exral fee.
| Number of ports | Applications | Turns Ratio | Power Over Ethernet |
| Single GE/ Dual FE | 1G Ethernet | 1:1 | IEEE 802.3 |
| Packaging | Tab Direction | Mounting Type | Contact Finish |
| Reel , Carton | -- | SMT/SMD | -- |
| Pins Number | Shielding | Isolation Voltage | LED Color |
| 24 Pins | -- | 1500 Vrms | --- |
Electrical Specification @25℃
1.Insertion Loss(dB Max):
0.3-1MHz: -1.1 1-65MHz: -0.8
65-100MHz: -1.0 100-125MHz: -1.2
2.Return Loss(dB Min @100 OHM):
0.5-40MHz: -18
40-100MHz: -12-20LOG(f/80MHz)
3.Crosstalk(dB Min):
0.3-100MHz: -33-20LOG(f/100MHz)
4.CM TO CM REJ:
0.3-100MHz: -30dB Min
5.CM TO DM REJ:
0.3-100MHz: -35dB Min

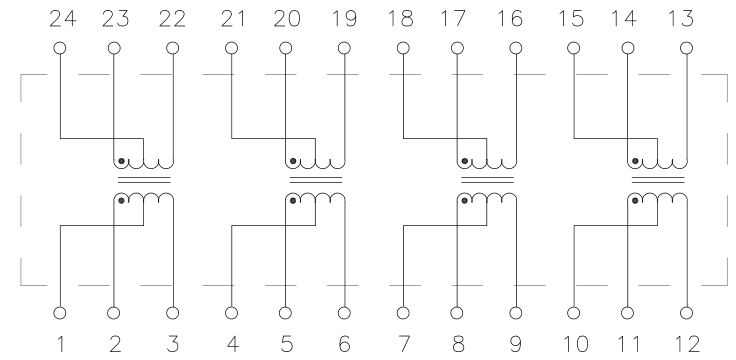

6.Turns Ratio:
PRI:SEC= 1CT:1CT ±2%P7.Inductance(100KHz/0.1V@11mA): 350uH Min
8.Balanced DC Line Current:
350mA Max @ 57VDC Continuous
9.Hipot: 1500Vrms/0.5mA
10.Operating Temperature: -40℃～+85℃.
NOTES:
1.Gigabit Transformer Modules With Power Over Ethernet Option
2.Meets IEEE 802.3af speciffcation
3.For RoHS part add suffix NL
4.RoHS"NL" peak solder rating 260℃%%P5℃.
5.100% Electrical Testing
