HX1225FNL / HX1225FNLT 100Base-T Ethernet MDL 1:1 TU Isolation Transformer

Name: HX1225FNL HX1225FNLT 100BaseT Ethernet MDL 11 TU Isolation Transformer
Brand: LINK-PP
Price: 0.06 USD

Wholesale HX1225FNL / HX1225FNLT 100Base-T Ethernet MDL 1:1 TU Isolation Transformer from china suppliers

Brand Name : LINK-PP

Model Number : HX1225FNL / HX1225FNLT

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Specification : HX1225FNL / HX1225FNLT

Transformer Type : Isolation and Data Interface

Turns Ratio : 1CT : 1CT

Size / Dimension : 12.70mm x 9.30mm x 6.20mm

Hipot : 1500V

LINK-PP P/N : LP41654ANL

Temperature : - 40 TO + 85℃

Archivi Disponibil : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

HX1225FNL / HX1225FNLT 100Base-T Ethernet MDL 1:1 TU Isolation Transformer

Pulse

HX1225FNL / HX1225FNLT

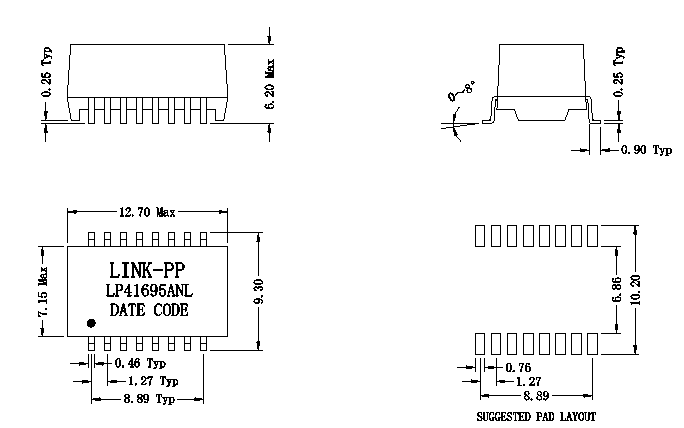

Datasheet/Price/Specification/3D

10/100

Transformer

Cross LP41695ANL

Electrical Specifications @ 25°C

1.Turns Ratio:
(2-3):(15-14)=1CT:1CT

%%P2%P (6-7):(11-10) =1.5CT:1CT %%P2%P2.OCL:
200uH MIN @100KHz,0.1Vrms,at +25℃;
100uH MIN @100KHz,0.1Vrms,at -45℃;
100uH MIN @100KHz,0.1Vrms,at +95℃;
3.Isolation(Input- Output):
1650Vrms,6 Seconds MAX
4.Insertion Loss:
TX: 1-50MHz: -1.0dB MAX
RX: 1-50MHz: -1.5dB MAX
5.Return Loss(@100Ω):
TX: 0.5-40MHz: -18dB MIN
60MHz: -14.5dB MIN
80MHz: -12dB MIN
RX: 0.5MHz: -18dB MIN
40MHz: -10dB MIN
60MHz: -8dB MIN
80MHz: -6dB MIN
6.Cross Talk:
30MHz: -45dB MIN
60MHz: -35dB MIN
100MHz: -30dB MIN
7.Operating Temperature: 0℃～70℃/-40℃～+85℃

HX2326NL MODULE 10/100B-T POE(+) SMD Pulse Transformers Surface Mount HX2326FNL
0875-1G2T-E3	C855-2B4R-54	HX2326FNL	0879-2C6R-54
HX1225FNL	7490101120	HX2326NL	HX2326FNL
0826-1X4T-43-F	0810-2H6R-28-F	0811-2X4R-28-F	0854-2X8R-GK-F
HX2326NL	20PT1024X LF	7490101120	0895-2X6R-GK
13F-2010CNL	S553-6500-D8	S560-6600-GG	S553-6500-43
7490101120	7490101120	LP41606NL	S553-6500-44
HX1225FNL	S553-6500-E2	S560-6600-GK	13F-2010CNL
S553-1084-11	LP41654ANL	S560-6600-GM	S553-6500-55
S553-1506-AE	S553-6500-E4	S560-6600-GV	S553-6500-58
LP41654ANL	S553-6500-E5	7490101120	7490101120

NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.With various Turns Ratios.
3.RoHS"NL" peak solder rating 260℃%%P5℃.
