LPJ0284GDNL Cross 13F-67BYGDD2NL Lan 100M RJ45 Modular Jack Interface

Product Categories

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: LPJ0284GDNL Cross 13F67BYGDD2NL Lan 100M RJ45 Modular Jack Interface
Brand: LINK-PP
Price: 0.05 USD

Brand Name : LINK-PP

Model Number : 13F-67BYGDD2NL

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000/25K

Price : $0.05-$1.28

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4200K-PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Part Number : 13F-67BYGDD2NL

speed : 10 / 100 Base-T

OperatingTemperature : 0°c~70°c

LED : Yellow / Green

Contact Now

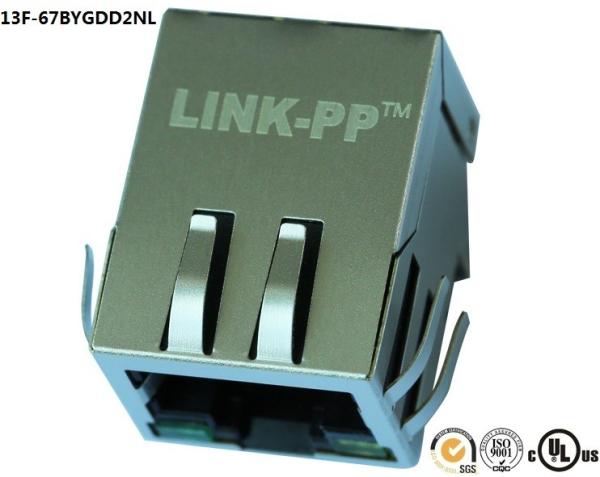

LPJ0284GDNL Cross 13F-67BYGDD2NL Lan 100M RJ45 Modular Jack Interface

13F-67BYGDD2NL Cross
RJ45 Modular Jack
Shielded with Filter Magnetic RJ45 Jack For CCTV/industrial cameras
High performance for maximum EMI suppression.
LAN interface suitable for 100Base-TX for Communication Controllers or Control Processors
Designed for network interface card application and Network Adapter
Original materials are RoHS and UL94-V0 compliant
ISO9001,SGS,UL,CE,REACH
Cross LPJ0284GDNL

KVM Over IP Switch Shielded with Filter Magnetic RJ45 Jack
Specially for M2M communication
Single port, Multi-port and Stackable configurations (Thru-hole)
Reduces the number of components to be placed on the board
Frees up board space and offers signal protection
Noise reduction in the system
Improved reliability and optimal system performance
Benefits of having shorter signal paths and the reliability gains from systems containing fewer components
Helps manufacturers reach their goals of cost reduction

Characteristics	13F-67BYGDD2NL100M RJ45 Modular Jack To voice interface module Across LPJ0284GDNL
	2)SMD,THT and THT with USB
	3)350μH min,OCL with 8mA bias
	4)Complies with IEEE 802.3
	5)Extended temperature range 0°c~70°c ( or -40°c~+85°c ) available
	6)PoE/PoE+ (350mA~720mA)
Operation/Application	×DSL Modems
	EMbedded PC
	LAN Applications
	Hub,Router,Switches
	AVR,DVR
Electrical Characteristics
Shielded	with/without
Termination Features
EMI Finger	with/without
Termination Method	Solder
Body Features
LED	with/without
EMI Fingers - Top and Sides	with/without
Latch Orientation	Tape UP/Down
PCB Tail Length	3.5±0.5mm
Height Above Board	Optional
Contact Features
Preloaded	YES
Contact Termination Type	Through Hole
Connector Style	Jack
Cores Number	8
Industry Standards
Lead Free Solder Process	Wave solder capable to 265°c
RoHS/elv Compliance History	Always was RoHS Compliant
Conditions for Usage
Applies To	Printed Circuit Board
Environmental Conditions	Office / Premises
OperatingTemperature(°c)	0°c~70°c / -40°c~+85°c
Other Features
Magnetic Circuit	3D15
Status Indicator	LED
Left LED Color	Optional
Right LED Color	Optional
Decoupling capacitor	with/without
Rear PCB Ground Tab	with/without
Singal Lead Quantity	8
Datasheets	E-mail Inquiry to Summer@link-PP.com
Others Name	LPJ0112GDNL
