ARJ11E-MCSC-A-B-GL2 Ethernet 10/100/1000 Lan RJ45 Single Port Shielded Socket

Name: ARJ11EMCSCABGL2 Ethernet 101001000 Lan RJ45 Single Port Shielded Socket
Brand: LINK-PP
Price: 0.09 USD

Brand Name : LINK-PP

Model Number : ARJ11E-MCSC-A-B-GL2

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 350000-420000/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Item : ARJ11E-MCSC-A-B-GL2

Cross Part : LPJxxxxNL

Mounting Type : Through Hole

Jack Type : RJ45 Female

Description : CONN MAGJACK 1PORT 1000 BASE-T

Samples : Available 2 pcs

Contact Now

ARJ11E-MCSC-A-B-GL2 Ethernet 10/100/1000 Lan RJ45 Single Port Shielded Socket

1. Conserves minimizing PCB space.
2. 1000 Base-TX LAN
3. Suitable CAT 5 & 6 cable and UTP
4. Rj45 integrated magnetics
5. LED optional , EMI-finger Optional

6. Files : PDF/3D/ISG/Stp/Step/Datasheet

LINK-PP Part Number	LPJxxxxNL
Cross Part Number	ARJ11E-MCSC-A-B-GL2
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	8
Diodes	NO DIODES
LED Option	GREEN/YELLOW
Latch	TAB DOWN
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Package Height (mm)	13.84
Package Length (mm)	21.59
Package Width (mm)	16.26
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Speed	1000 BASE-T
Temperature	0 TO + 70℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Competitive Advantage:

World’s Leader Supplier Of Integrated RJ45 Connector,Discrete Magnetic Transformers And Optical Transceiver Modules

1. 16 years production experience,

2. 1100 staff,

3. 100% test

4. Flexible delivery time

ARJ11E-MCSC-A-B-GL2 Ethernet 10/100/1000 Lan RJ45 Single Port Shielded Socket

Product Tags:

single port rj45

shielded rj45 plugs

Wholesale ARJ11E-MCSC-A-B-GL2 Ethernet 10/100/1000 Lan RJ45 Single Port Shielded Socket from china suppliers

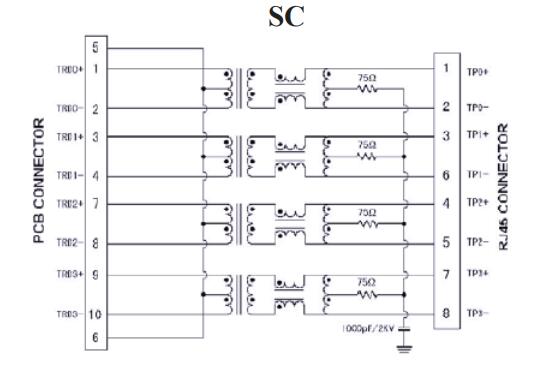

ARJ11E-MCSC-A-B-GL2 Ethernet 10/100/1000 Lan RJ45 Single Port Shielded Socket Images
