ARJ11D-MASE-A-B-GMU2 Rj45 Modular Jack 10/100 Magnetics For Computer Terminals

Name: ARJ11DMASEABGMU2 Rj45 Modular Jack 10100 Magnetics For Computer Terminals
Brand: LINK-PP
Price: 0.05 USD

Brand Name : LINK-PP

Model Number : ARJ11D-MASE-A-B-GMU2

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 50/500/1000/25K

Price : $0.05-$1.28

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4500K-PCS/Month

Delivery Time : Stock

Packaging Details : 60pcs/tray,or Reel Package

LINK-PP Part Number : LPJxxxxNL

Cross Part Number : ARJ11D-MASE-A-B-GMU2

Speed : 10/100 BASE-T

LED : Green / Yellow

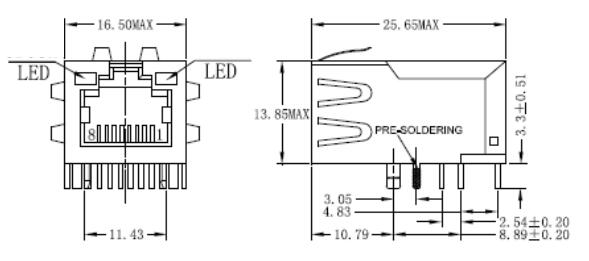

Dimension : 25.65X16.50X13.85mm

Cores : 4

Contact Now

ARJ11D-MASE-A-B-GMU2 Rj45 Modular Jack 10/100 Magnetics For Computer Terminals

ARJ11D-MASE-A-B-GMU2 Rj45 Modular Jack 10/100 Magnetics For Computer Terminals

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Body Related Features:
1) Port Configuration = Single
2) EMI Fingers -Top and Sides = With
3) Latch Orientation = Standard - Latch Up
4) PCB Tail Length

5. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole

6. Identification Marking:
1) Left LED Color (Position #1) = GREEN
2) Right LED Color (Position #2) = YELLOW

7. Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

VME, VPX, and VXI Switches

RAID Controllers

Fibre Channel Products

Vacuum Fluorescent Displays

Other models:

ARJ11D-MASG-A-A-EMU2	ARJ11D-MASG-A-A-FMU2	ARJ11D-MDSE-A-B-FMU2
ARJ11D-MDSG-B-A-EMU2	ARJ11D-MASG-B-A-EMU2	ARJ11D-MASG-B-A-GMU2
ARJ11D-MASE-A-B-FMU2	ARJ11D-MASE-A-B-GMU2	ARJ11D-MASG-A-A-GMU2
ARJ11D-MDSH-A-B-ELU2	ARJ11D-MDSH-A-B-FLU2	ARJ11D-MDSG-B-A-FMU2
ARJ11D-MDSH-A-B-GLU2	ARJ11D-MASH-B-A-ELU2	ARJ11D-MDSE-A-B-GMU2
