Name: LPJ1029AWNL POE Connector Rj45 Jack 10100Mbps Android IPC Ethernet Port
Brand: LINK-PP
Price: 0.09 USD

Brand Name : LINK-PP

Model Number : LPJ1029AWNL

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : 50PCS/Tray,24Trays=1200pcs=37*30*30CM=11KG/Carton

Specification : LPJ1029AWNL

Part NO : LPJ1029AWNL

Ethernet : 1x10/100Mbps Ethernet Power

Mounting : Thru-hole

Indicator : LED

Samples : Available

Contact Now

LPJ1029AWNL POE Connector Rj45 Jack 10/100Mbps , Android IPC Ethernet Port

Rj45 Power Over Ethernet IEEE802.3af

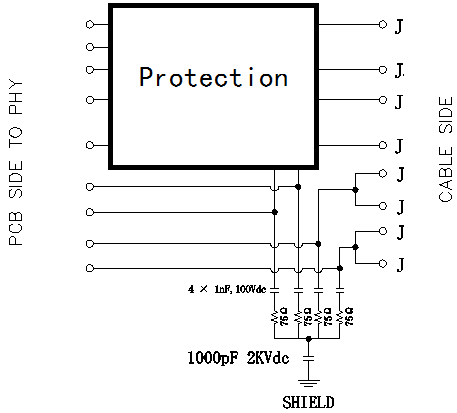

Electrical Specification @25℃ 1.Turns Ratio(±2%): TX=1CT∶1CT RX=1CT∶1CT 2.Insertion Loss: 0.3～100MHz: -1.5dB Max 3.Return Loss: 1～30MHz:-16dB Min 60～80MHz:-10dB Min 4.Crosstalk: 1～100MHz:-30dB Min 5.OCL(0.1V,100KHz,20mA DC Bias): 350uH Min 6.Hipot: 1500Vrms 7.Operating Temperature: 0℃～70℃
