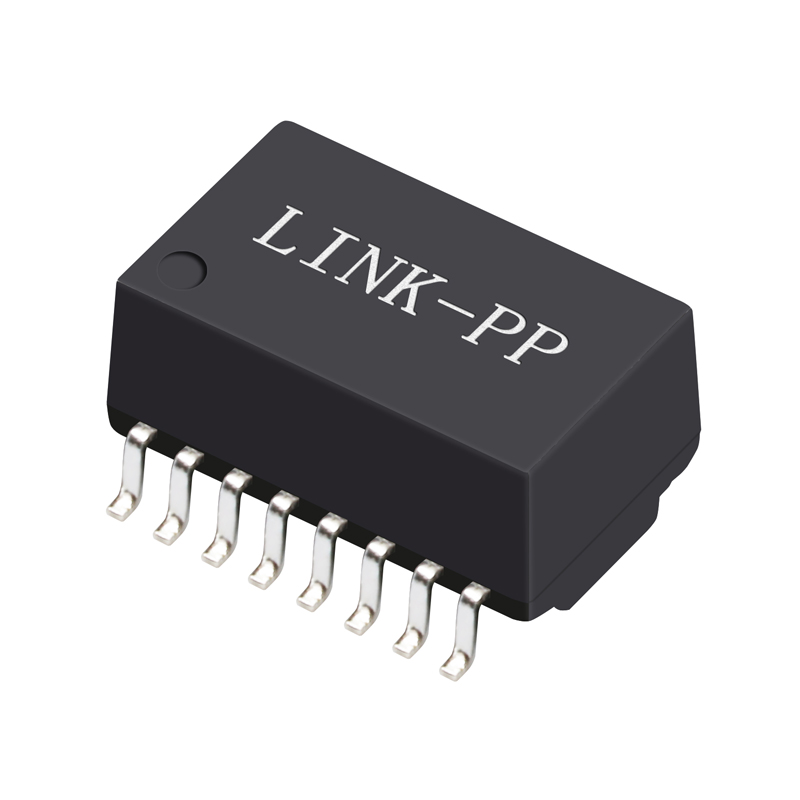

ST7033QNL 10G BASE-T 16 Pin Single Port SMD ETHERNET TRANSFORMER

Brand Name : LINK-PP

Model Number : LPXXXXXX

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : ST7033QNL

Equivalent : LPxxxxxx

Speed : 10G Base-T

Transformer Type : Isolation and Data Interface

Temperature : 0°C ~ 70°C

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

ST7033QNL 10G BASE-T 16 Pin Single Port SMD ETHERNET TRANSFORMER

ST7033QNL 10G Base-T ETHERNET TRANSFORMER For Surgical Equipment (SMD ,16 PIN, Single Port )
LINK-PP Part Number LPxxxxxx
Other Part Number ST7033QNL
Speed 10G BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMT
Temperature 0 TO 70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 3
Number of Ports SINGLE
Package Height (Inches/mm) 0.225/5.715
Package Length (Inches/mm) 0.455/11.557
Package Width (Inches/mm) 0.375/9.525
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

ST7033QNL 10G BASE-T 16 Pin Single Port SMD ETHERNET TRANSFORMER

ST7033QNL SMD LAN Magnetic Transformer Features:
■ IEEE 802.3 Ethernet compatible
■ Designed for AMD IC manufacturers
■ Fully integrated for adapter, hub and motherboard applications
■ Extended temperature range: 0 °C to +70 °C
■ RoHS compliant*


ST7033QNL ETHERNET TRANSFORMER Electrical Specifications @ 25 °C:
ST7033QNL 10G BASE-T 16 Pin Single Port SMD ETHERNET TRANSFORMER

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly


ST7033QNL 10G BASE-T 16 Pin Single Port SMD ETHERNET TRANSFORMER Electrical Schematic:

ST7033QNL 10G BASE-T 16 Pin Single Port SMD ETHERNET TRANSFORMER


ST7033QNL SMD ETHERNET TRANSFORMER package:

ST7033QNL 10G BASE-T 16 Pin Single Port SMD ETHERNET TRANSFORMER
