L22T008-3 Single Port 10G Base –T LAN Filter Ethernet Magnetic Transformers PoE_30/60W Meet IEEE 802.3bt type3 standard
| UDE Part Number | L22T008-3 |
| LINK-PP Part Number | LPxxxxxx |
| Manufacturer | LINK-PP |
| Speed | 10G BASE-T |
| Number of Ports | Single Port |
| PIN number | 24 PIN |
| Cores per Port | 8 |
| POE | PoE_30/60W |
| Type | SMD |
| Size | 13.6 x 15 x 6.25 |
| Pin Pitch | 0.99 |
| Circuits | 3C+T |
| Operating Temperature | -40~+85℃ |
| CMC | PHY |
| You may be interesting in below considerate supports: |
| Datasheet | Request by email to | contact us |
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping |
| Company Name | |
| Delivery Address | |
| Telephone Number | |
| Contact Person | |
| UPS/DHL/Fedex/TNT A.C | (If available) |
| Trial Production | U/P(USD) | $0.06-$3.2 | We can ship out parts directly to your warehouse/door to door |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Mass Production | U/P(USD) | Stock | |
| L/T(Weeks) | Stock |
| Shipping Term | DAP/CIF/FCA/FOB |
| Lifecycel | More than 20 years | You can use our parts for long term consideration |
| Reject Ratio | Zero Defective (100% Tested) |
| Special Services | Accept customized service | Accept revised designing |
Now you can contact us instantly
|
UDE L22T008-3 FEATURES:
Designed for Ethernet 10G BaseE-T,full Single port applications.
Supports 4 pairs of category 6A or greater cable.
Cable interface for isolation and low common mode emissions.
Designed to meet IEEE 802 3bt type3 with 720mA balanced current.
Compliant with RoHS&Halogen Free requirements.
Operating and Storage Temperature
Operating Temperature: -40°C to +85°C
Storage Temperature: -25°C to +105°C
Packing Information
500 pcs finished goods per reel
3 reels( 1500 pcs finished goods) per inner box
2 Inner boxes(3000 pcs finished goods) per master carton
L22T008-3 Single Port 10G Base –T Ethernet Magnetic Transformers Product Dimension:
L22T008-3 Single Port 10G Base –T LAN Filter ELECTRICAL CHARACTERISTICS Schematic:

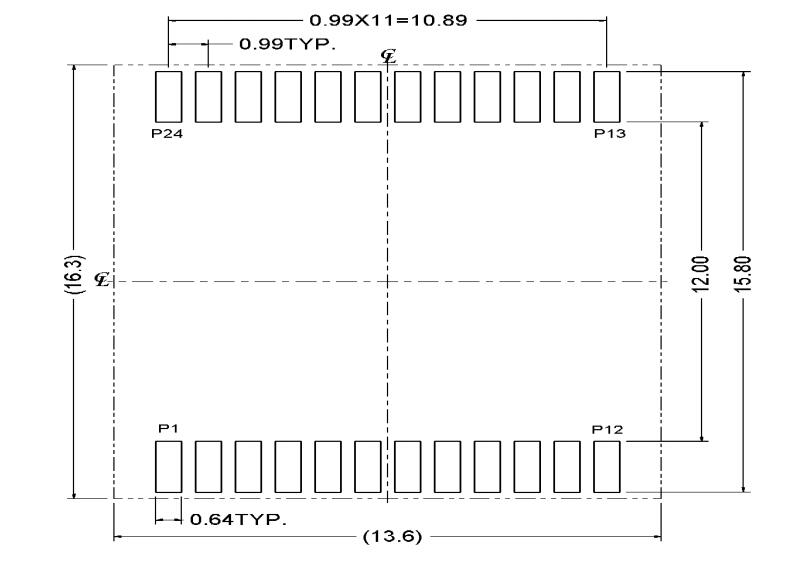

UDE L22T008-3 Recommened PCB Layout (Unit mm)
L22T008-3 Similar Part Number :
| L22T006-B | L22T007-2 | L22T007-4 |
| L22T008-3 | L22T008-4 | L22T009-3 |
| L22T010-2 | L22T012-3 | L22T015-0 |
| L22T017-3 | L22T019-3 | L22T021-0 |
| L22T022-0 | L24H004-2 | L24H005-3 |
