G4802AG Dual Port Gigabit Ethernet Transformer LP5014NL 1000Base-T Interface

Name: G4802AG Dual Port Gigabit Ethernet Transformer LP5014NL 1000BaseT Interface
Brand: LINK-PP
Price: 0.06 USD

Wholesale G4802AG Dual Port Gigabit Ethernet Transformer LP5014NL 1000Base-T Interface from china suppliers

Brand Name : LINK-PP

Model Number : G4802AG

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Item : LP5014NL

Cross P.N : G4802AG

Pin No : 48 pins

Series : 2 Ports GigE Transformer

Termination Style : SMD/SMT

Isolation Voltage : 1500V

Samples : Free Offer

Cross Part : XF-LCZ3Y2ZA = LP5014NL

Contact Now

G4802AG Dual Port Gigabit Magnetic Transformers LP5014NL 1000Base-T Interface

Features

■ Two Ports Ethernet Magnetic Transformers LP5014NL Equivalent to G4802AG
■ Compliant with IEEE802.3ab Draft Standards for 1000 Base-T
■ Designed for Long Haul Gigabit Ethernet 10/100/1000 Base-T Full Duplex applications
■ Low profi le surface mount packaging designed for refl ow process (245 ° peak)
■ Supports 4 pairs of Category 5 UTP cables

G4802AG Dual Port Gigabit Ethernet Transformer LP5014NL 1000Base-T Interface

Dual Port,1000 BASE-T Ethernet Transformer Modules,SMD,Rohs
LINK-PP Part Number:	LP5014NL
Other Part Number	G4802AG
Speed:	1000BASE-T
Number of Ports:	DUAL
Application - LAN:	ETHERNET (NON PoE)
Package:	SMD
Temperature:	0℃ TO + 70℃
AutomDX:	YES
Comment:	SAME AS NL VERSION
Configuration RX:	T,C,S
Configuration TX:	T,C,S
Construction:	OPEN FRAME
Cores Per Port:	16
Package Height (Inches):	0.276
Package Height (mm):	7.00
Package Length (Inches):	1.102
Package Length (mm):	28.00
Package Width (Inches):	0.606
Package Width (mm):	15.40
Turns Ratio RX:	1CT:1CT
Turns Ratio TX:	1CT:1CT

Product Tags:

100/1000base-t filter

1000base-t magnetic module

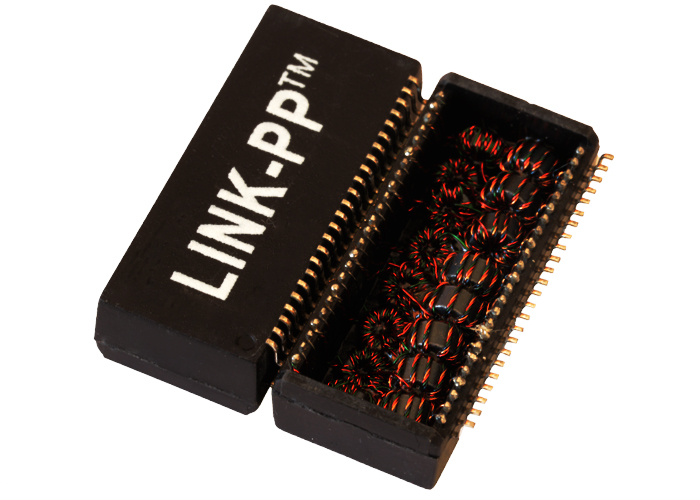

G4802AG Dual Port Gigabit Ethernet Transformer LP5014NL 1000Base-T Interface Images
