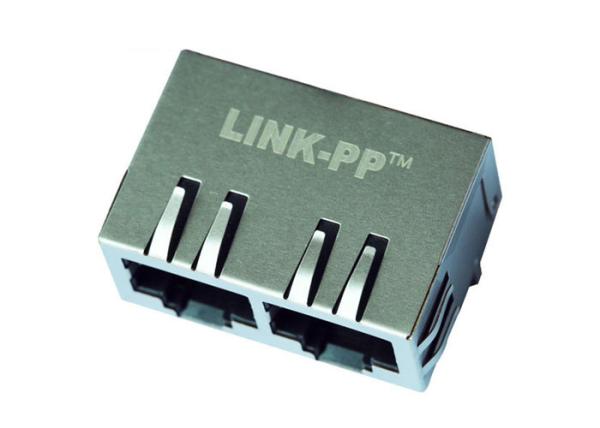

441500011 Dual Port 10/100 RJ45 Magnetics Angle Right Jack LPJEF102CNL

Name: 441500011 Dual Port 10100 RJ45 Magnetics Angle Right Jack LPJEF102CNL
Brand: LINK-PP
Price: 0.11 USD

Wholesale 441500011 Dual Port 10/100 RJ45 Magnetics Angle Right Jack LPJEF102CNL from china suppliers

Brand Name : LINK-PP

Model Number : 441500011

Certification : ISO9001,SGS,UL,CE,REACH163

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.11-$12

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 208K/Month

Delivery Time : Stock

Packaging Details : Tray

Designe PN# : 441500011

Made In China : LPJEF102CNL

Interface : 10/100 Base-T, AutoMDIX

LED : Without LED

Samples : Supportive

File : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

441500011 Dual Port 10/100 RJ45 Magnetics Angle Right Jack LPJEF102CNL

Shielded 1x2 Port RJ45 Magjack Connector without Integrated Magnetics,without LED,Tab Down,RoHS
LINK-PP Part Number	LPJEF102CNL
Molex Part Number	441500011
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	-
Diodes	NO DIODES
LED Option	Without LEDs
Latch	TAB Down
Number of Ports	1X2
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Package Height (Inches)	0.537
Package Height (mm)	13.65
Package Length (Inches)	0.837
Package Length (mm)	21.27
Package Width (Inches)	1.225
Package Width (mm)	31.12
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Speed	Without Magnetics
Temperature	-40 TO 85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years

441500011 Dual Port 10/100 RJ45 Magnetics Angle Right Jack LPJEF102CNL

Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

•Delivery Time:2-3 Weeks After Orders

Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy

LINK-PP Corporate Policy

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service
